Resilient Seated 300PSI-NRS Type Flanged Ends 388F
GALA Regulating System Gate Valves
Valve Standard
Conforms to AWWA C509/BS5163
Working Pressure
21 Bar/300PSI
Falnged Ends
ANSI B16.1 Class 150
Material List
| Part Name | Material | Specification |
| Body | Ductile Iron | A536 65-45-12 |
| Wedge Disc | Ductile Iron EPDM coated | |
| Disc Nut | Bronze | ASTM B62 |
| Stem | Stainless Steel | AISI 304/302 |
| Gasket | EPDM | Commercial |
| Bonnet | Ductile Iron | A536 65-45-12 |
| Thrust Collar | Bronze | ASTM B62 |
| Gland | Ductile Iron | A536 65-45-12 |
| Wrench Nut | Ductile Iron | A536 65-45-12 |
| Post Plate | Ductile Iron | A536 65-45-12 |

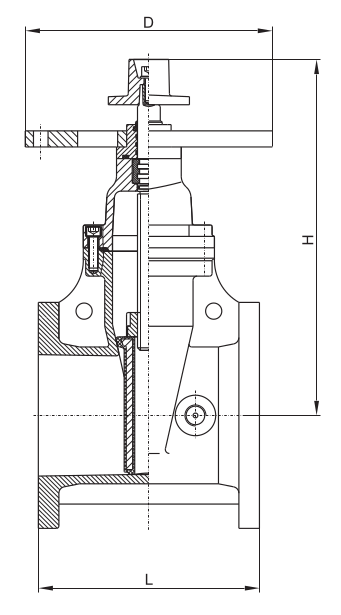

Dimensions(mm/inch):
| SIZE | mm inch | 50 2 | 65 2½ | 80 3 | 100 4 | 125 5 | 150 6 | 200 8 | 250 10 | 300 12 |
| L | mm inch | 178 7.00 | 191 7.50 | 203 8.00 | 229 9.00 | 254 10.00 | 267 10.50 | 292 11.50 | 330 13.00 | 365 14.00 |
| H | mm inch | 295 11.61 | 295 11.61 | 323 12.72 | 342 13.46 | 408 16.06 | 440 17.32 | 537 21.14 | 640 25.20 | 723 28.46 |
| D | mm inch | 305 12.01 | 305 12.01 | 305 12.01 | 305 12.01 | 305 12.01 | 305 12.01 | 305 12.01 | 305 12.01 | 305 12.01 |
